Hexagonal Wire Mesh

Hexagonal Wire Netting

INQUIRY

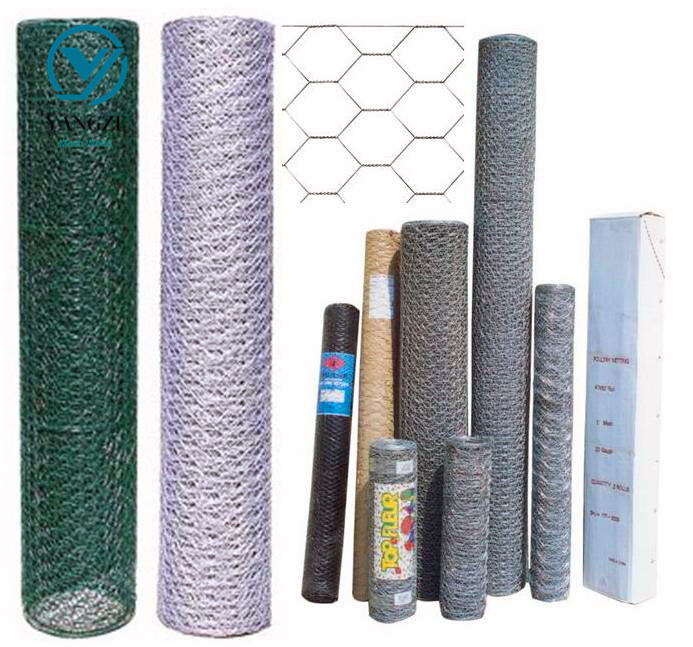

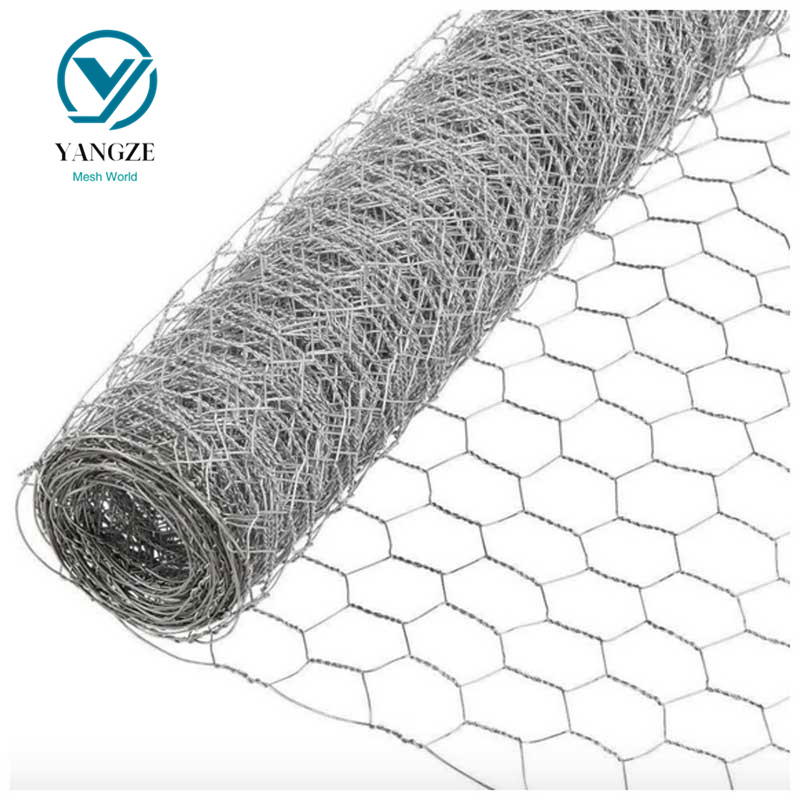

HEXAGONAL WIRE MESH/CHICKEN WIRE NETTING/YANGZE WIRE MESH

* Material: Low carbon steel wire Q195

* Processing mode: twist, reverse twist, doubled sided twist

* Classification:

I. Electric galvanized hexagonal mesh;

II. Hot dipped galvanized hexagonal mesh;

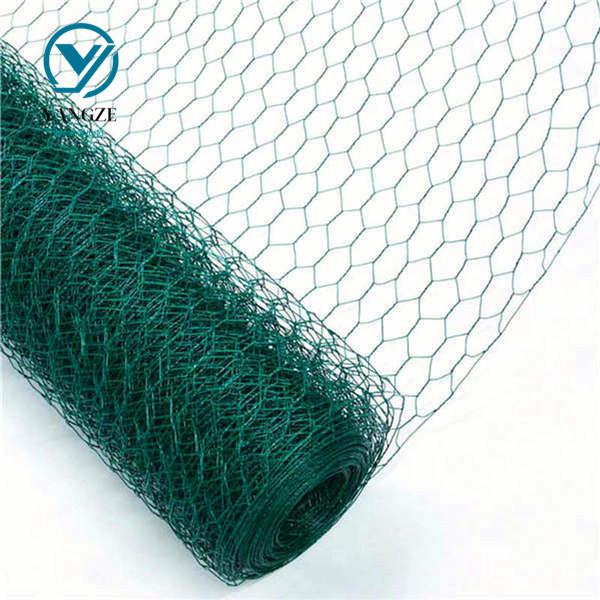

III.PVC coated hexagonal mesh.

* Feature:firm in structure, flat surface, with fine resistant to corrosion or oxidation.

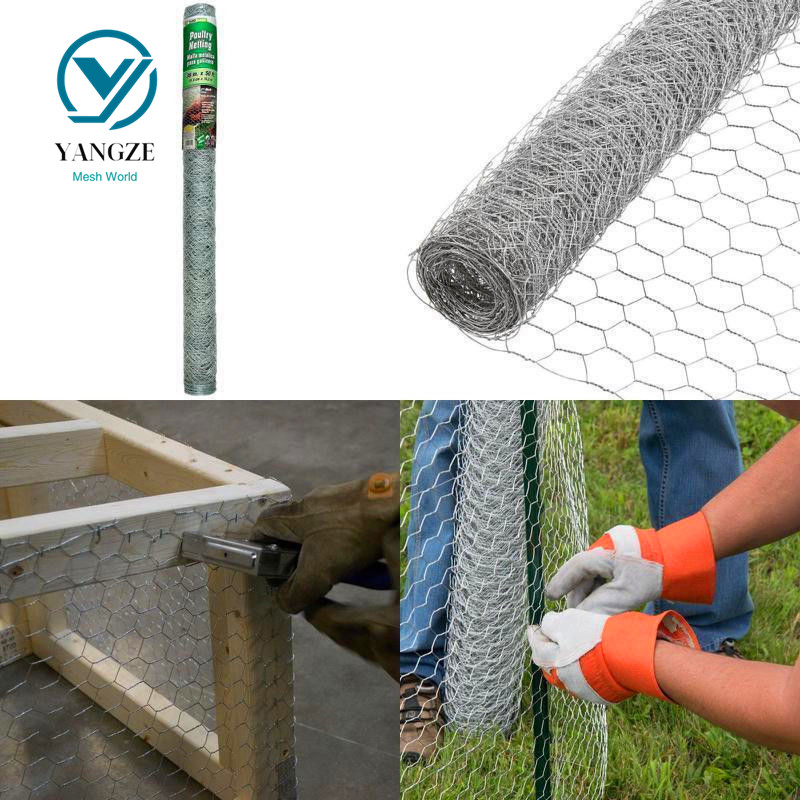

* Application: As chicken mesh, it is used in building for chicken, duck, rabbit, and zoo fence, equipment safety fence, highway fence, Stadium fence, and road fence, etc.; As Gabion mesh, it can be made into a box, used in protecting sea wall, hillside, and Reservoir, also specially used for flood protection.

* Specifications as follow:

HEXAGONAL WIRE MESH
Mesh Size			Wire Diameter	Width & Length
In Inch		In MM	In MM
3/8”		9.52mm	0.42mm - 0.50mm	Width: 0.5m-2.0m Length: 25m, 30m Other sizes can be made as request
1/2”		12.7mm	0.38mm - 0.80mm
5/8”		16mm	0.38mm - 1.0mm
3/4”		19mm	0.38mm - 1.2mm
1”		25.4mm	0.38mm - 1.2mm
5/4”		31mm	0.55mm - 1.2mm
3/2”		38.1mm	0.55mm - 1.4mm
2”		50.8mm	0.55mm - 1.5mm
3”		76.2mm	0.65mm - 1.5mm
4”		101.6mm	1.2mm - 2.0mm
GABION MESH
Opening (mm)	Wire Diameter (mm)		Strands	Sizes
60 x 80	2.0-2.8		3	2m x 1m x 1m, 3m x 1m x 1m, 4m x 1m x 1m, 2m x 1m x 0.5m, 4m x 1m x 0.5m, Or as request
80 x 100	2.0-3.2		3
80 x 120	2.0-3.2		3
100 x 120	2.0-3.4		3
100 x 150	2.0-3.4		3
120 x 150	2.0-4.0		3
Some sizes can add reinforcing rib.
